Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching

Product Categories

Sussman Machinery(Wuxi) Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching
Brand: Sussman
Price: 1 USD

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Product Specification : C80-300, thickness 2-3mm

Running speed : 0-12m/min

Main shaft diameter : 75mm

Roller material : GCr15

Main Motor power : 11Kw

Hydraulic cutting power : 5,5Kw

Contact Now

Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching

1. Technical Parameter

Products specification: C80-300. Thickness: 2-3mm. Yield strength: 250Mpa max.
Running speed: 0-12m/min.
Main shaft material: 45# steel, Q&T treatment
Main axis diameter: ￠75mm
Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity: HRC58-62.
Roller groups: 15 groups main rollers
Levelling roller: 7 rollers levelling device
Main motor power: 11KW;
Hydraulic station motor power: 5.5KW
Punching station: 4 punch device
Electrical control system: Whole line adopted PLC control, Panasonic PLC.
Cutting method: Hydraulic powered, automatically cut to length after roll forming
Cutting mold material: Cr12 quenching treatment
Uncoiling: by 3ton passive uncoiler
Machine dimension: 11.5m L X 1.2 m W X 1.0 m H
Machine weight: about 8 tons.

2. Machine List

S.N	Equipment name	Quantity
1	3T manual uncoiler	1 set
2	Levelling device	1 unit
3	Servo feeding	1 unit
4	Pre-cutting	1 unit
5	Punching die set For bottom notches, dimple screws holes, round holes and top notches	4 units
6	Main roll forming machine	1 set
7	Main drive	1 unit
8	Cutting unit	1 set
9	Hydraulic station	1 set
10	Control system ( including control cabinet)	1 set
11	Out put rack	1 sets

3. Profile Drawing

Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching

4. Processing Flow Chart

Uncoiling –– infeed guiding –– levelling–– servo punching–– cutting to length rollforming –– out put product

5. Machine Photo

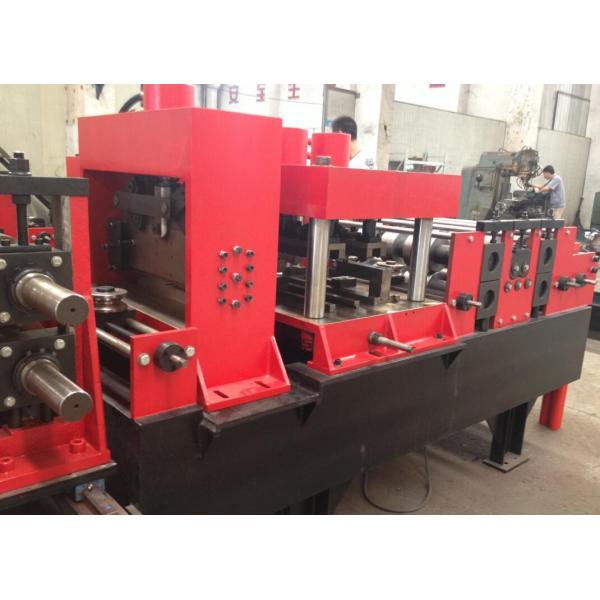

Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching

6. Loading Pics

Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching
